Material: CP titanium, Titanium alloy

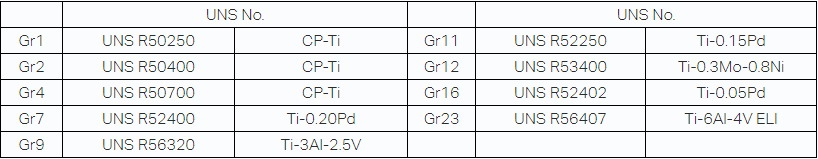

Grade: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc
Size: Thickness: 0.3～5mm, Width: 400～3000mm, Length: ≤6000mm
Standard: ASTM B265, AMS 4911, AMS 4902, ASTM F67, ASTM F136 etc
Status: Hot Rolled (R), Cold Rolled(Y), Annealed (M), Solution treatment (ST)

Description

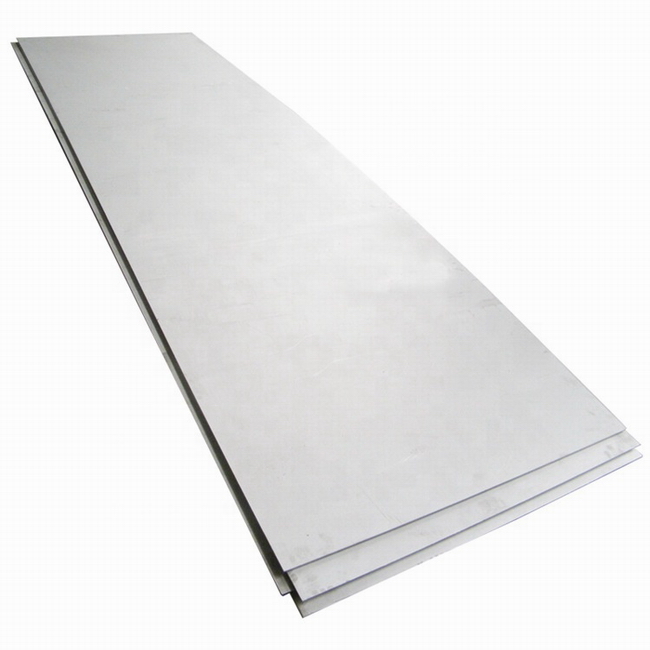

Titanium sheet is produced on the basis of titanium plate with further cold rolling; the production process of titanium sheet is more complicated. The deformation control is more strictly in the process of rolling.
Our company provides titanium coil and titanium sheet. We have plenty of titanium sheets in stock. That can be cut in different sizes according to the customer’s needs, greatly shorten the time of delivery.
We mainly provide pure titanium sheet of Gr1, Gr2, Gr4 grades; For titanium alloy sheet, We mainly provide Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 and other grades.

Application
Used in the production of heat exchanger, tower, reaction kettle.
Used in the production of metal composite material.
Used in electrolytic copper industry.
Used to produce titanium mesh.



Specification

Grade	Status	Specification
Gr1,Gr2,Gr4,Gr5,Gr7,Gr9,Gr11, Gr12,Gr16,Gr23	Hot Rolled(R) Cold Rolled(Y) Annealed(M) Solution treatment(ST)	Thickness(mm)	Width(mm)	Length(mm)
		0.3～5.0	400～3000	1000～6000

Chemical composition

Grade	Chemical composition, weight percent (%)
	C ≤	O ≤	N ≤	H ≤	Fe ≤	Al	V	Pd	Ru	Ni	Mo	Other Elements Max. each	Other Elements Max. total
Gr1	0.08	0.18	0.03	0.015	0.20	—	—	—	—	—	—	0.1	0.4
Gr2	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr4	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr5	0.08	0.20	0.05	0.015	0.40	5.5～6.75	3.5～4.5	—	—	—	—	0.1	0.4
Gr7	0.08	0.25	0.03	0.015	0.30	—	—	0.12～0.25	—	0.12～0.25	—	0.1	0.4
Gr9	0.08	0.15	0.03	0.015	0.25	2.5～3.5	2.0～3.0	—	—	—	—	0.1	0.4
Gr11	0.08	0.18	0.03	0.15	0.2	—	—	0.12～0.25	—	—	—	0.1	0.4
Gr12	0.08	0.25	0.03	0.15	0.3	—	—	—	—	0.6～ 0.9	0.2～0.4	0.1	0.4
Gr16	0.08	0.25	0.03	0.15	0.3	—	—	0.04～0.08	—	—	—	0.1	0.4
Gr23	0.08	0.13	0.03	0.125	0.25	5.5～6.5	3.5～4.5	—	—	—	—	0.1	0.1

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)	Bend Test(Radius of Mandrel)
	ksi	MPa	min		max			＜1.8mm In thickness	1.8mm～4.57mm In thickness
			ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24	1.5T	2T
Gr2	50	345	40	275	65	450	20	2T	2.5T
Gr4	80	550	70	483	95	655	15	2.5T	3T
Gr5	130	895	120	828	—	—	10	4.5T	5T
Gr7	50	345	40	275	65	450	20	2T	2.5T
Gr9	90	620	70	483	—	—	15	2.5T	3T
Gr11	35	240	20	138	45	310	24	1.5T	2T
Gr12	70	483	50	345	—	—	18	2T	2.5T
Gr16	50	345	40	275	65	450	20	2T	2.5T
Gr23	120	828	110	759	—	—	10	4.5T	5T

Tolerance (mm)

Thickness	Width tolerance
	400～1000	＞1000
0.3～0.5	±0.05	±0.05
0.5～0.8	±0.07	±0.07
0.8～1.1	±0.09	±0.09
1.1～1.5	±0.11	±0.13
1.5～2.0	±0.15	±0.16
2.0～3.0	±0.18	±0.20
3.0～4.0	±0.22	±0.22
4.0～5.0	±0.35	±0.35

Testing
Chemical composition test
Physical properties test
Appearance defects inspection
Ultrasonic flaw detection
Eddy current testing

Packaging

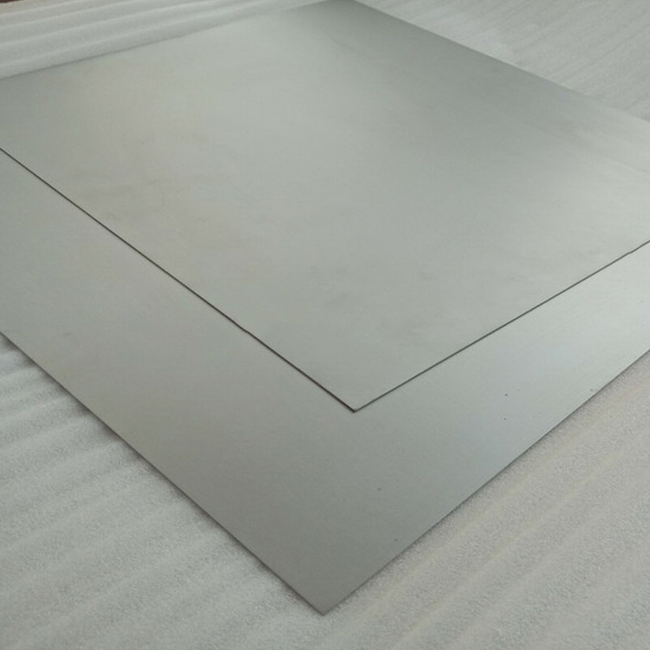

In order to avoid the titanium sheets have any collision in transit or damage, usually wrapped with pearl cotton (expandable polyethylene), and then packed into wooden case for delivery.
