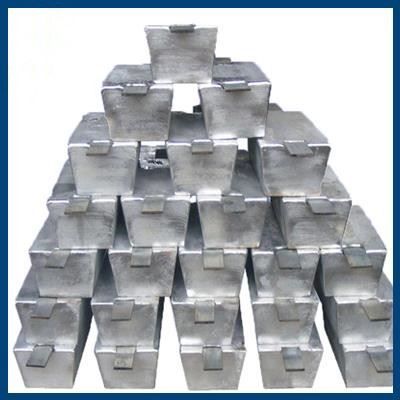

Zinc alloy anodes are particularly suitable for ballast tanks, hull of ships, jetties and subsea pipeline applications, etc. Zinc Alloy Anode are cast from high grade zinc alloyed to ensure an even corrosion pattern, reliable electrical efficiency and long working life. The anodes are made to meet ASTM B418 type I standard and U.S. MIL-A-18001K.
Chemical composition:
|
Type |
Fe % (Max) |
Pb % (Max) |
Cu % (Max) |
Al % |
Cd % (Max) |
Others % (Max) |
Zn % |
|
I |
0.005 |
0.006 |
0.005 |
0.1-0.5 |
0.025-0.07 |
0.01 Max |
Remaider |
|
II |
0.0014 |
0.003 |
0.002 |
0.005 Max |
0.003 Max |
-- |
Remaider |
Type I: ASTM-B-418 TYPE I and MIL-A-1800 I J.
Type II: ASTM-B-418 TYPE II.
Electrochemical properties :
|
Open Voltage (-V) |
Closed Voltage (-V) |
Actual capacitance A.h/kg |
Efficiency % |
Solution Appearance |
|
1.05-1.09 |
1.00-1.05 |
780 min |
95 min |
Solute uniformly |
