Molybdenum Sputtering Target

Molybdenum is a lustrous, silvery colored metal with an abundance of 1.5 ppm in the earth's crust. In many instances, it shows a resemblance to tungsten with which it tends to be paired in the transition series in the periodic table. However, their chemistries tend to show more distinct differences than might be expected. Molybdenum has a high melting point, and the pure metal applications take advantage of this. For example, the pure material is used as resistance heating elements in furnaces, as filament supports in electric lamps, and as electrodes for mercury vapor lamps. Molybdenum is used as an alloying agent in certain grades of steel.

Molybdenum Sputtering Target Applications

We provides the sputtering target made by molybdenum and its alloys used in TFT-LCD and solar energy.

Composition of Molybdenum Sputtering Target

Pure molybdenum sputtering targets
Mo >99.95%
Molybdenum alloy sputtering targets
Molybdenum Niobium (Mo-Nb) Sputtering Targets: 90at% Mo:10at% Nb
Molybdenum Chromium (Mo-Cr) Sputtering Targets: Mo 97 wt% Mo: 3 wt% Cr
Molybdenum compounds sputtering targets
Molybdenum Telluride (MoTe2) Sputtering Targets, purity: >99.999%
Molybdenum Selenide (MoSe2) Sputtering Targets, purity: >99.999%
Molybdenum Boride (Mo2B5) Sputtering Targets, purity: >99.5%
Molybdenum Disulfide (MoS2) Sputtering Targets, purity: >99.9%
Molybdenum Silicide (MoSi2) Sputtering Targets, purity: >99.5%

Specifications of Molybdenum Sputtering Target

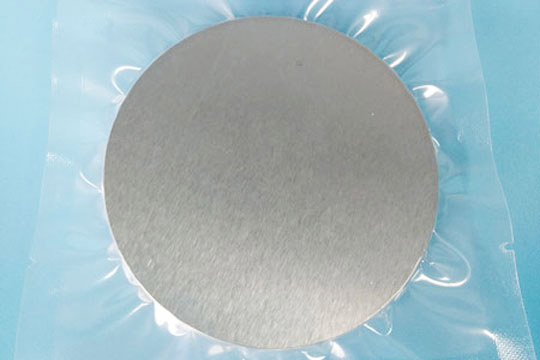

Disc Target

Diameter: 10mm to 360mm
Thickness: 1mm to 10mm

Planar Target

Width: 20mm to 600mm
Length: 20mm to 2000mm
Thickness: 1mm to 10mm

Rotary Target

Outer diameter: 20mm to 400mm
Wall thickness: 1mm to 30mm
Length: 100mm to 3000mm
