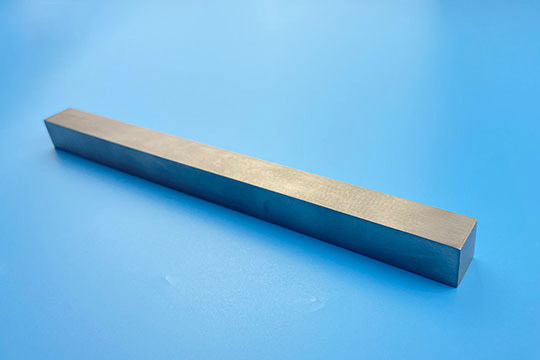

Niobium Bar

Grade: TNb1, TNb2

Niobium Bar Applications

With a high melting point, excellent anti-corrosion property, and workability in a cold environment, Nb, Nb alloy tube, rod, and wire are widely used in chemistry, electronics, aviation, and aerospace industry. They can be applied as nozzles, structural parts for airplane engines, inside elements, protection material for the nuclear reactor, anti-corrosion parts under strong acid, or environment. Your special requests are welcomed.

Niobium Bar Specifications

Niobium round bar is manufactured as random length pieces or cut to customers' desired lengths in diameters ranging from 0.125 inches to 5.00 inches. Please view Niobium Rod to see our standard sizes of niobium round bar. Below are most of the standard sizes of our niobium rectangular bars. If you do not see the required niobium bar size, please feel free to contact us.

Width	Thickness	Length	Length Tolerance
15mm	15mm	600mm	+1mm, -0
20mm	20mm	1000mm	+1mm, -0
45mm	45mm	1200mm	+2mm, -0
60mm	60mm	1500mm	+3mm, -0

Chemical Composition of Niobium Bar

Grade		TNb1	TNb2
Impurity content ,%,max	Ta	0.1	0.15
	O	0.05	0.15
	N	0.03	0.05
	C	0.02	0.03
	Si	0.003	0.005
	Fe	0.005	0.02
	W	0.005	0.01
	Mo	0.005	0.005
	Ti	0.005	0.01
	Al	0.003	0.005
	Cu	0.002	0.003
	Cr	0.005	0.005
	Ni	0.005	0.01
	Zr	0.02	0.02
Size		≥14×14×300	≥14×14×300
		The flexural tolerance along the length for bars shall not be over 1% of the length
Application		Far alloys

Special requirements to be agreed upon by the supplier and buyer
