Rhenium Bar

Classification: According to the different requirements of use, Rhenium bar according to the physical properties are divided into "high density Rhenium bar" and "medium density Rhenium bar", according to the chemical composition is divided into "high purity 99.99%" and "super pure 99. 999%".

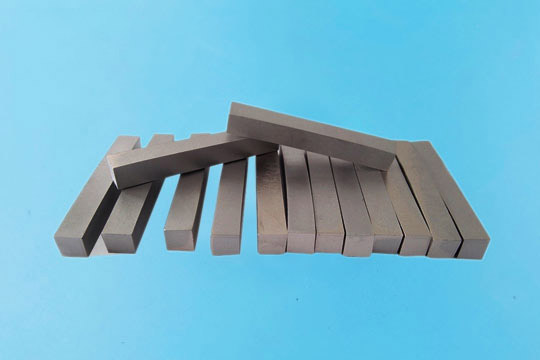

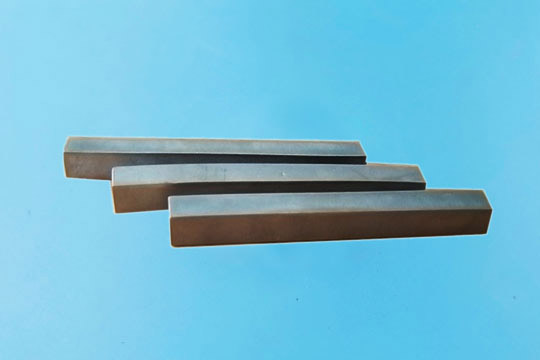

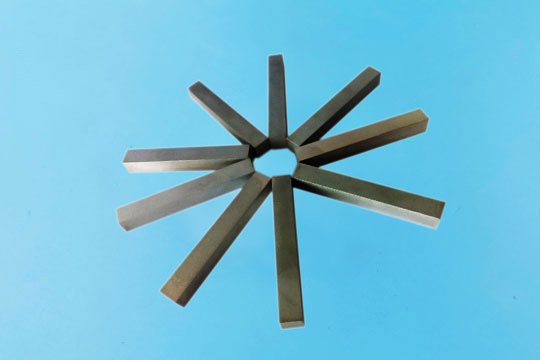

Appearance: Grey or silver metallic square bar or round bar.

Application: Medium density Rhenium bar can be used as additives for super alloys, and high density Rhenium bar can be used for the manufacture of rods, wires or high temperature structural parts.

Specification: 4N Grade Re>99 99%(calculated by subtraction method, except gas element).

5N Grade Re>99.999%(calculated by subtraction method, except gas element).Medium density Rhenium bar ,density is about 12g/cc.High density rhenium bar ,density is about 18 5g/cc.

Rhenium Bar Properties

Size:Square bar (12~16) *(12~16)* (150~500) mm.
Round bar D(10~20) *L (50~300) mm. Can be customized as per requirement.

Chemical Composition of Rhenium Bar

main content:Re 99.95% min（excluding gas elements）
Maximum trace metallic impurities,analysed by ICP-MS

Trace impurities (%, max)
Element	4N Grade	5N Grade	Element	4N Grade	5N Grade
Na	0.0010	0.0001	Ni	0.0001	0.00001
Mg	0.0001	0.00001	Cu	0.0001	0.00001
Al	0.0001	0.00001	Zn	0.0001	0.00001
Si	0.0005	0.00005	As	0.0001	0.00001
P	0.0001	0.00005	Zr	0.0001	0.00001
K	0.0010	0.0001	Mo	0.0010	0.0002
Ca	0.0005	0.00005	Cd	0.0001	0.00001
Ti	0.0001	0.00001	Sn	0.0001	0.00001
V	0.0001	0.00001	Sb	0.0001	0.00001
Cr	0.0001	0.00001	Ta	0.0001	0.00001
Mn	0.0001	0.00001	W	0.0010	0.0002
Fe	0.0005	0.00005	Pb	0.0001	0.00001
Co	0.0001	0.00001	Bi	0.0001	0.00001
Se	0.0001	0.00001	Tl	0.0001	0.00001
Gas element for medium density(%, max)
O	0.03	0.03	C	0.005	0.002
N	0.003	0.003	H	0.002	0.002
Gas element for high density(%, max)
O	0.003	0.003	C	0.005	0.002
N	0.003	0.003	H	0.002	0.002
