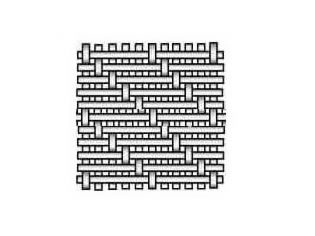

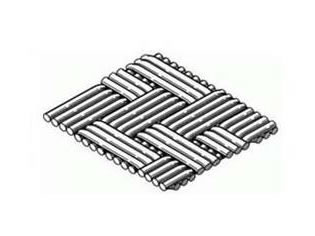

Five Heddle Woven Stainless Steel Wire Cloth has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.
Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.
Packing:wrapped with moister-proof paper, then in wooden cases.
|
Meshes per inch(25.4mm) Warp x Weft |
Wire Diameter(mm) |
Aperture(mm) Warp x Weft |
Open Area% | Weight(kg/m2) |
|
108 X 59
|
0.160
|
0.075 X 0.271
|
20
|
1.07
|
|
110 X 60
|
0.160
|
0.071 X 0.263
|
19
|
1.09
|
|
38 X 38
|
0.150
|
0.518 X 0.518
|
60
|
0.43
|
