Material: stainless steel wire
Weaving: Dipped galvanizing after weaving, weaving with hot dipped galvanized iron wire, Electric galvanizing after weaving, Weaving with electric galvanized iron wire, PVC coated welded wire mesh.
Technical Note:
1. Standard roll length: 30m;width: 0.5m to 1.8m
2. Special sizes available at request

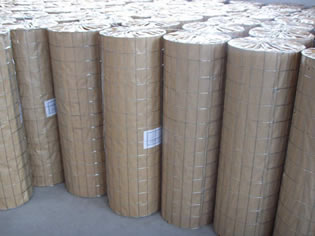

3. Packing: in waterproof paper in rolls. Custom packing available at request.
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1. Standard roll length: 30m;width: 0.5m to 1.8m. 2. Special sizes available at request. 3. Packing: in waterproof paper in rolls. Custom packing available at request. | ||
