Standard: ASTM B521
Grade: RO5200, RO5400, RO5252 (Ta-2.5W), RO5255 (Ta-10W)

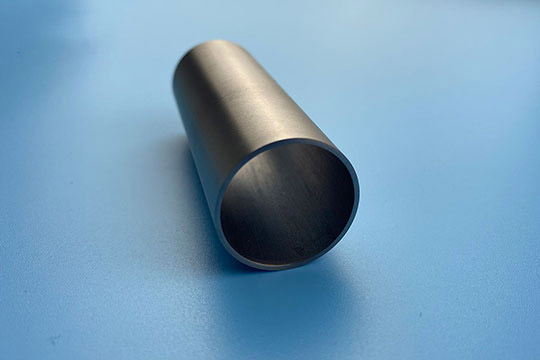

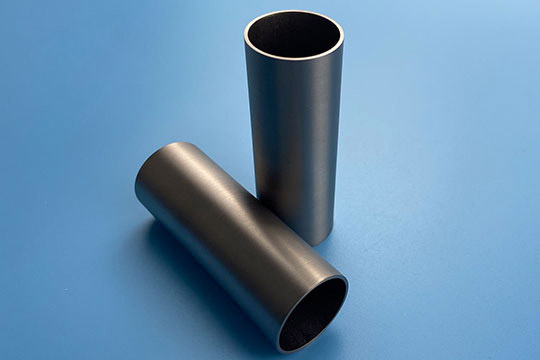

Tantalum Tube Applications

With the features of high melting point, corrosion-resist, good machinability in a cold environment, tantalum, and tantalum alloy (Ta-2.5W、Ta-10W、Ta-40Nb) tubes are widely applied in the chemical industry, high-temperature technology field, and atomic energy industry to build reaction container, and heat exchanger, pipe, condenser, clip heater, helix loop, U-shape pipe, and thermocouple, and its protective pipe, liquid state metal container, and pipe.

Tantalum Tube Specifications

We can supply seamless or welding tantalum tubes and pipes with good quality. Below are most of the standard sizes. If you do not see the size of the tantalum tube that you require, please feel free to contact us.

Outer Diameter, Inch (mm)	Diameter Tolerance, Inch (mm), +/-	Wall Thickness Tolerance, %, +/-
<1 (25.4)	0.004 (0.102)	10
1~1.5 (25.4~38.1)	0.005 (0.127)	10
1.5~2 (38.1~50.8)	0.006 (0.152)	10
2~2.5 (50.8~63.5)	0.007 (0.178)	10
2.5~3.5 (63.5~88.9)	0.010 (0.254)	10

Chemical Composition of Tantalum Tube

Element	R05200 (%,Max)	R05400 (%,Max)
C	0.01	0.01
O	0.015	0.03
N	0.01	0.01
H	0.0015	0.0015
Fe	0.01	0.01
Mo	0.02	0.02
Nb	0.1	0.1
Ni	0.01	0.01
Si	0.005	0.005
Ti	0.01	0.01
W	0.05	0.05

Physical Property of Tantalum Tube

Grade	Tensile Strength  δbpsi (MPa), ≥	Yield Strength  δ0.2, psi (MPa),≥	Elongation in 1″/2″ Gage Length, %, ≥
RO5200/RO5400	30000 (207)	20000 (138)	25
RO5252	40000 (276)	28000 (193)	20
RO5255	70000 (481)	60000 (414)	15
RO5240	40000 (276)	28000 (193)	20

Surface Condition of Tantalum Tube

Outside surface – Polished, Roughness Ra<3.2
Inside surface – Depends on the diameter
