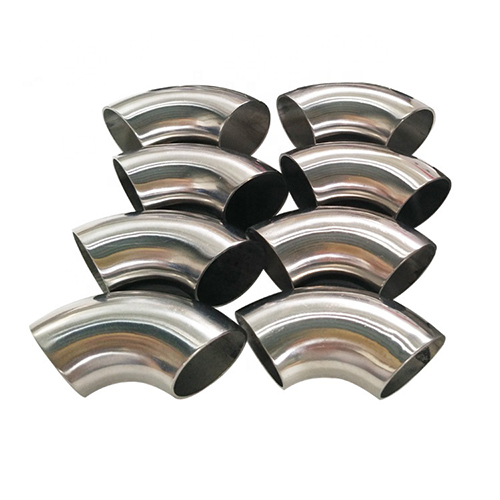

ASTM B363 WPT2 Titanium elbow Titanium bend
Density: 4.51g/cm3
Standard: ASME B16.9, ASTM B363, EN1092-1, EN10253, JIS B2313,MSS SP-43, SSG7836E, DIN 2065
Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23,Nickel Ni200,Ni201
Surface: polished, machining surface, quartz-shot, sand-blasting, Pickling

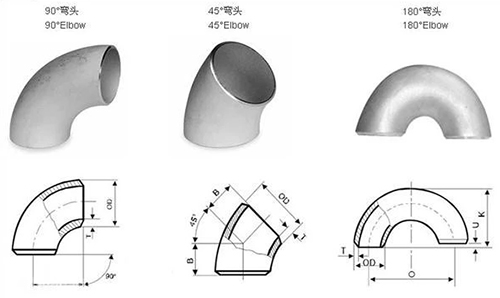

Degree: 30,45,60,90,120,180degree
Type: R=1.0D,1.5D,3D,5D

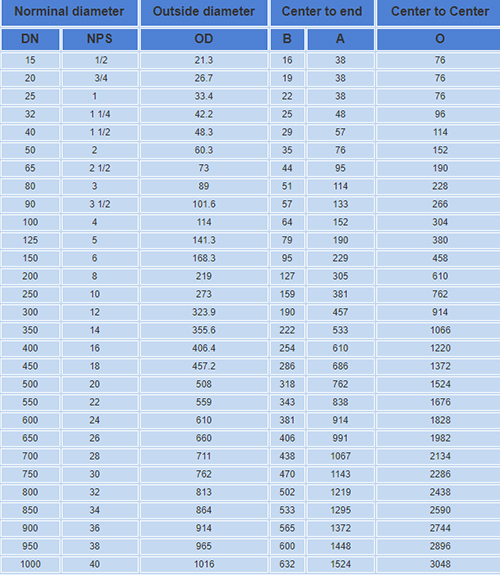

Sizes: Outer diameter: DN15-1200 Wall thickness: 1-30MM NPS 1/2"-48" Schedule 5s to Schedule 160
Technical: Welded, Forged, Pressing, Seamless
Inspection: X-Ray Tests or Dye Penetrate Tests
Application:
Petroleum, chemical, machinery, boiler, electric power, shipbuilding, papermaking, construction
Gas Pipe, Carbonization, Refrigeration, Light Industry, Salt Industry,
Feature:
1. Low Density and High Strength
2.Excellent Corrosion Resistance in acid and alkali salt
3.High heat transfer capability
4. Nonmagnetic and Non-toxic
5.Low elasticity module
6.Low thermal expansion coefficient
7.Superior strength-to-density ratios
8.Good strength at low and high temperature.
9.Good thermal properties
