W-Re alloys are made from Tungsten alloy with 3%, 5%, 25%, or 26% Rhenium, which becomes more ductile and machinable. With good electrical properties, W-Re alloys are widely used as high-temperature thermocouple materials.
| Products Name | Main Type | Main Spec.(mm) |
|---|---|---|

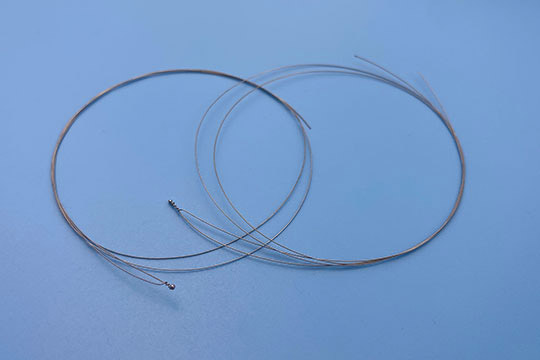

| WRe Thermocouple Wire | WRe3/25, WRe5/26 | Φ0.1, Φ0.2, Φ0.25, Φ0.3, Φ0.35, Φ0.5 |
| WRe Alloy Wire | WRe3%, WRe5%, WRe25%, WRe26% | Φ0.1, Φ0.2, Φ0.25, Φ0.3, Φ0.35, Φ0.5 |
| Sheathed WRe Thermocouple | WRe3/25, WRe5/26 | Used in a vacuum, hydrogen, and inert gases with a working temperature range of 0-2300℃ |
| WRe Rod/Bar | WRe3%, WRe5%, WRe25%, WRe26% | Φ1-Φ35 |

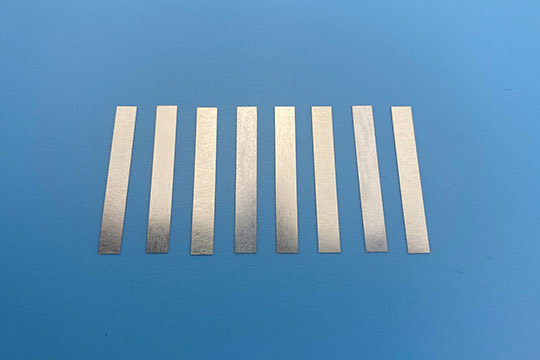

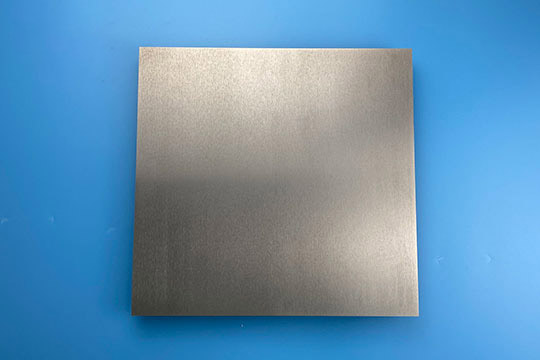

| WRe Alloy Sheet/Plate | WRe3%, WRe5%, WRe25%, WRe26% | 0.2min x (10-350) x 600 max |
| WRe Alloy Target | WRe3%, WRe5%, WRe25%, WRe26% | Customized as per requirements |
|
WRe Alloy Tube |
WRe3%, WRe5%, WRe25%, WRe26% |
| W | W-3Re | W-25Re | ||
| Melting Point (℃) | 3410 | 3360 | 3100 | |
| Density (g/cm3) | 19.3 | 19.4 | 19.65 | |
|
Resistivity (uΩ.cm) |
20 ℃ | 5.5 | 9.7 | 27.9 |
| 1000 ℃ | 36.2 | 37.8 | 54.7 | |
| 1500 ℃ | 52 | 53.5 | 68.5 | |
| 2000 ℃ | 66 | 69 | 82 | |
| Microhardness (MPa) | Machined | 3423-3923 | 3923-4325 | 5394-7845 |
| 1000 ℃ annealed | 834 | 2844-3040 | 3579-3678 | |
| Tensile Strength (MPa) | Machined | 1950 | 3300 | 2400 |
| 1400 ℃ annealed | 1650 | 1750 | 1950 | |
| 1600 ℃ annealed | 1200 | 1620 | 1810 | |
| 1800 ℃ annealed | 850 | 1420 | 1600 | |
| Elongation (%) | Machined | 1-2 | 1-2 | 2-3 |
| 1400 ℃ annealed | 1-2 | 2-3 | 15-20 | |
| 1600 ℃ annealed | 1-2 | 5-10 | 18-22 | |
| 1800 ℃ annealed | 1-2 | 10-15 | 17-19 | |
| Recrystallization Rate | 1100 | 1500 | 1800 | |
