Zirconia's high-density, low porosity, inertness, toughness, and super hardness make it the perfect material for making mortars and pestles.
Being approximately 10 on the Mohs hardness scale, zirconia mortar and pestles can grind materials too hard for agate, alumina, and porcelain. Our high wear-resistant mortar and pestle effectively eliminates product contamination and is chemically inert to all acids.
These special features make zirconia the most versatile, best-suited mortar, pestle material for sensitive biological, and other critical applications requiring ultra-low contamination and acid resistance.
Zirconia Mortar and Pestle List
Zirconia Mortar 60 x 50 x 20 w/ Pestle
Zirconia Mortar 80 x 65 x 30 w/ Pestle
Zirconia Mortar100x 80 x 37 w/ Pestle
Replacement Zirconia Pestle
Zirconia Mortar and Pestle Properties
|
Composition (wt%) |
94.9% ZrO2 + 5.1%Y2O3 |
|
Bulk Density (kg/L) |
3.5 |
|
Specific Density (g/cm3) |
> 6.0 |
|
Hardness(HV) (GPa) |
> 10 |
|
Modulus of Elasticity (GPa) |
200 |
|
Thermal Conductivity (W/m.K) |
3 |
|
Thermal Expansion Coefficient (10x10-6/k (20 to 400)) |
9.6 |
|
Crushing Load ( KN) |
> 15 |
Zirconia Mortar & Pestle Specifications
  |
  |
|
Name |
Zirconia Mortar/ Pestle |
Name |
Zirconia Mortar/ Pestle |
|
Model |
YSZ-M060 |
Model |
YSZ-M080 |
|

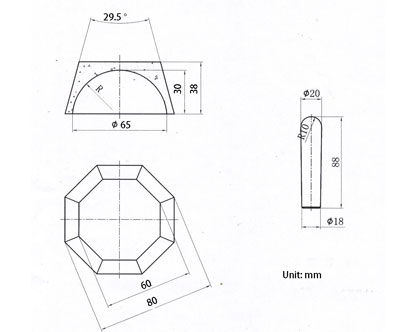

Outer Diameter (OD) |
60mm |
Outer Diameter (OD) |
80mm |
|
Inner Diameter (ID) |
48mm |
Inner Diameter (ID) |
65mm |
|
Depth |
22mm |
Depth |
30mm |
  |
  |
|
Name |
Zirconia Mortar/ Pestle |
Name |
Zirconia Mortar/ Pestle |
|
Model |
YSZ-M113 |
Model |
YSZ-M160 |
|

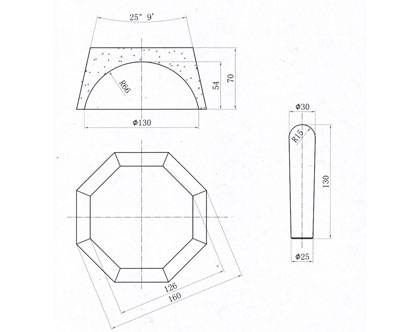

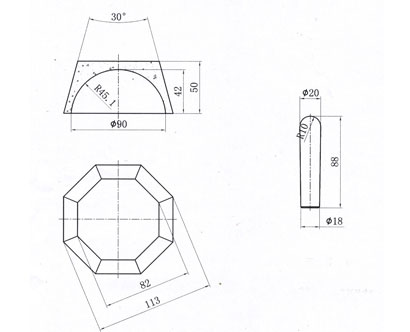

Outer Diameter(OD) |
113mm |
Outer Diameter(OD) |
160mm |
|
Inner Diameter(ID) |
90mm |
Inner Diameter(ID) |
130mm |
|
Depth |
42mm |
Depth |
54mm |
Zirconia Mortar and Pestle Applications
1. Hard Materials
Zirconia's superior hardness allows it to grind tough ceramics such as aluminum oxide, and silicon oxide.
2. Low Contamination Materials
When absolutely no contamination is tolerable, such as in ultra-pure organic, nanomaterial, and forensic applications, Zirconia is your best choice.
3. HF Applications
Zirconia's inertness to HF and other acids make it superior to agate, and other materials.
4. High-temperature Applications
Zirconia's physical and thermal shock resistance lends it well to high-temperature applications.
