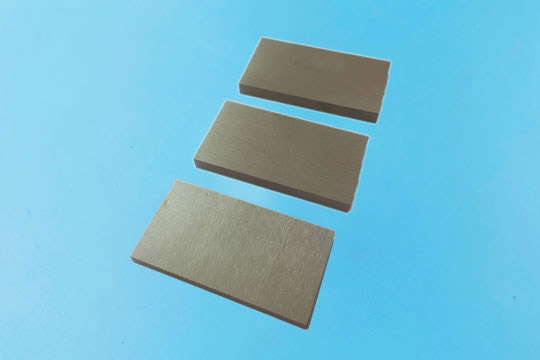

Zirconium Plate
We have a fine rolling and annealing technology to supply the perfect Zirconium Plate (Zirconium Sheet).
Our zirconium plates are engineered to international standards and specifications, and they undergo the highest level of quality control. Engineering standards defining the chemical composition, mechanical property, and the tolerance of sheets complement fully independent testing. We also have shearing capabilities to meet your specific project needs.
Zirconium Plate Properties
|
Standard |
ASTM B551 |
|
Grade |
R60702, R60704, R60705 |
|
Thickness |
0.5mm - 50 mm |
|
Width |
10mm - 2500mm |
|
Technology |
Hot-rolled, cold-rolled, hot forging, machining |
|
Condition |
Annealed (M),cold rolled(Y), hot rolled(R) , quenching(C) |
|
Surface |
Chemically cleaning or machined to be bright. Dependent on different thicknesses. |
|
Grade |
Element Composition (%) < |
|
Zr+Hf |
Hf |
Fe+Cr |
Sn |
H |
N |
C |
Nb |
O |
|
R60702 |
99.2 |
4.5 |
0.2 |
-- |
0.005 |
0.025 |
0.05 |
-- |
0.16 |
|
R60703 |
98 |
4.5 |
-- |
-- |
0.005 |
0.025 |
-- |
-- |
-- |
|
R60704 |
97.5 |
4.5 |
0.20~0.40 |
1.0~2.0 |
0.005 |
0.025 |
0.05 |
-- |
0.18 |
|
R60705 |
95.5 |
4.5 |
0.2 |
-- |
0.005 |
0.025 |
0.05 |
2.0~3.0 |
0.18 |
|
R60706 |
95.5 |
4.5 |
0.2 |
-- |
0.005 |
0.025 |
0.05 |
2.0~3.0 |
0.16 |
Surface Roughness of Zirconium Plate
Cold rolled, bright: Ra ≤ 0.80 μm
Cold rolled, ground: Ra ≤ 1.20 μm
Cold rolled, pickled (dull): Ra ≤ 1.60 μm
Zirconium Sheets & Plates In Form:
Coils, foils, shim sheet, perforated sheet, strip, flats, blank (Circle), ring (Flange).
Quality Assurance of Zirconium Plate
According to globally recognized standards, such as ASTM
Chemical composition
Mechanical properties
ISO quality management system
