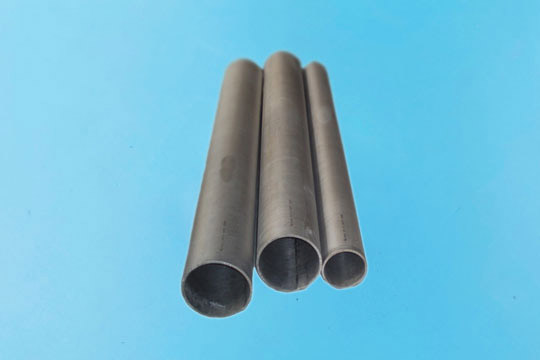

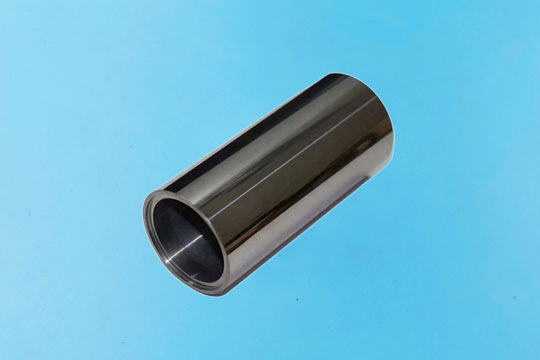

Zirconium Tube

Zirconium Pipe (Zirconium Tube) is delivered in straight lengths or as a U-bent pipe. We also supply complementary zirconium products for heat exchange applications. Zirconium spiral pipe, zirconium capillary pipe are also available on request.

Technique	Zirconium welded tube, zirconium seamless tube
Grade	R60702, R60704, R60705
Standard	ASTM B523, ASTM B353, ASTM B658
Size	OD(0.5-200)mm*WT(0.1-20)mm*L(MAX 20000)mm
Shape	Round, square
Surface	Polished or according to customer’s requirement
Processing	Hot rolling, cold rolling, drawing, extruding

Zirconium Tube Applications

Zirconium Pipe (Zirconium Tube) is extremely corrosion-resistant due to the formation of a stable oxide film and is unaffected by acids (except HF) alkalis. As a result of its corrosion resistance, zirconium pipe/tube is widely used in the chemical industry where corrosive agents are used. Due to its excellent high-temperature properties, coupled with its low neutron absorption, it is used in the construction of nuclear reactors. The pure metal is also used as a lining in jet engines.

Zirconium Tube Fittings Product Forms

Zirconium elbows
Zirconium returns
Zirconium reducing tees
Zirconium concentric reducers
Titanium eccentric reducers
Zirconium reducers
Zirconium couplings
Titanium bushings
Titanium caps
