Waterjet Cutting

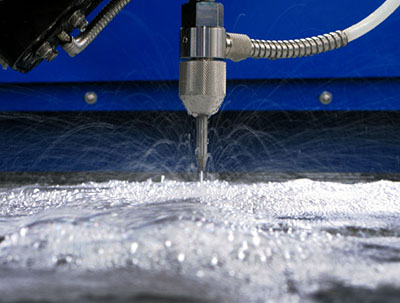

Waterjet cutting is a process that produces shapes by cutting sheet material using a thin, high pressure stream of water containing abrasive particles. The water jet is at very high pressure - typically 50,000 to 60,000 PSI and mixed with garnet abrasive. The sheet being cut is often submerged in a tank of water to reduce the resulting noise. The high pressure is created by a special pump designed for the purpose.
Waterjet cutting is an economical way to cut 2D shapes in a very wide range of materials with no tooling costs. The unique process provides reasonably good edge quality, no burrs and usually eliminates the need for secondary finishing processes. Waterjet Cutting also generate no heat so the material edge is unaffected and there is no distortion. Creating custom part this way can cut single or multi-layer materials from as thin as .001" to as thick as several inches.
Waterjet cutting feature：
Edges are good but usually not as smooth as milling or punching.
Some spots along the edge, such as where the cut ends, may be less smooth.
The edges of the cut part generally have a dull finish.
Kerf width is typically 0.060", hence inside corners will be rounded to 0.03" radius.
There may be some hazing on the surface - especially near the edges.
Thin flimsy structures and shapes where a high proportion of material is removed may present difficulty in meeting dimensional and flatness tolerances.
Edges will be slightly sloped - the bottom side will have slightly more material at the edge than the dimensioned top side.
