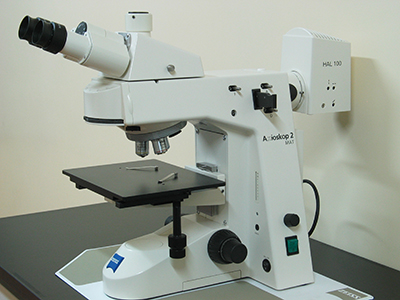

Metallographic Microscope
Metallographic microscope is the microscope on the microstructure of materials by using optical microscopy, macrostructure and microstructure of fracture are analyzed, both imaging and qualitative, including material microstructure quantitative characterization, also contains the necessary sample preparation, preparation and sampling methods. It mainly reflects the characterization of constituent materials, phase microstructure, grain, non metallic inclusions and number of crystal defects (such as dislocations), morphology, size, distribution, orientation, spatial arrangement of the state.
Optical system: ICCS optical system.
The lens body: Design of FEM, position of ACR coding.
Objective multiple: 5X 10X 50X 100X,optional 1.25X, 2.5X, 150X, 20X.
Eyepiece: 10X.
FOV: 20,22.
Observation function: bright field, dark field, simple polarization, differential interference.
Light source: 12V 50W halogen lamp.
