carry out standard ASTM-98 ; high potential anode
fine performance
factory direct

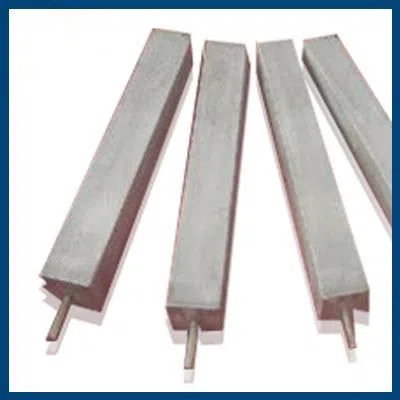

High potential magnesium anode in conform to the standard ASTM-98is made from high purity magnesium with high quality. The anode adopting special technique holds splendid electrochemistry performance. In the process of cathode protection, anode consumption is stable; therefore, it has longer life time. In the actual used process, the actual measurement working potential is between-1.8v and 1.85v; therefore, it can provide the most effective protection for structures. It is suggested to use potential magnesium anode in the soil whose resistance is over 8000ohm.cm.
Electrochemical Performance
|
Designation |
Opened-circuit potential -V, Cu/CuSO4 |
Closed-circuit potential -V, Cu/CuSO4 |
Actual capacity (A. h/kg) |
Current efficiency(%) |
|
MGAZ63B |
1.57~1.67 |
1.52~1.57 |
=1210 |
=55 |
|
MGAZ31B |
1.57~1.67 |
1.47~1.57 |
=1210 |
=55 |
|
MGAM1C |
1.77~1.82 |
1.64~1.69 |
=1100 |
=50 |
The chemical component of magnesium alloy anode
|
Designation |
Alloying Element |
Impurity element, not more than |
|||||||
|
Al |
Zn |
Mn |
Mg |
Fe |
Cu |
Ni |
Si |
Ca |
|
|
MGAZ63B |
5.3-6.7 |
2.5-3.5 |
0.15-0.60 |
Balance |
0.003 |
0.01 |
0.001 |
0.08 |
-- |
|
MGAZ31B |
2.5-3.5 |
0.60-1.4 |
0.20-1.0 |
Balance |
0.003 |
0.01 |
0.001 |
0.08 |
0.04 |
|
MGM1C |
=0.01 |
-- |
0.50-1.3 |
Balance |
0.01 |
0.01 |
0.001 |
0.05 |
-- |
|
MG |
=0.02 |
=0.03 |
=0.01 |
=99.9 |
0.005 |
0.004 |
0.001 |
0.01 |
- |
