Titanium Mmo Coated Mesh Ribbon Anode for Cathodic Protectio

Application
  1. The mmo titanium mesh belt anode (mmo mesh anode) is based on the titanium mesh belt, coated with a layer of precious gold mixed oxidethrough a special process, and cross-welded with the titanium conductive sheet to form a network structure auxiliary anode;
  2. The use of mmo titanium mesh anode in the impressed current cathodic protection device, together with the potentiostat,grid anode and anode cable junction box, long-acting copper sulfate reference electrode or high-purity zinc reference electrode, constitute the network anode impressed current cathodic protection device system;
  3. Mmo titanium mesh with anode can evenly spread the current to the outer wall surface of the adjacent tank bottom plate, reducing the risk of overprotection or underprotection.

Advantage
  1. Simple installation and construction
  2. long service life ,design life can reach more than 50years
  3. coating wear is low and uniform
  4. Stable performance ,even in chlorinated concrete shows excelletn performance
  5. can work under high current density
Substrate Material Titanium sheet/plate  GR1, according to the ASTM B265
Regular Coating Platinum:0.5um/1um;
Mixed Iridium and Platinum:0.5um/1um;
Mixed Ruthenium and Iridium:6-8um;
Mixed Iridium and Tantalum:6-8um.
Technology Sand blasting,Acid washing,Brush Coating & Sintering
Dimension and Shape Different dimension and shape is available,or according to custom's /drawing

Working  Parameter

Current density: <600A/m2;
Temperature: 40-60°C;
Chlorine concentration: About 30~50grams/liter;
Polarity reversal: suitable;
Reversal frequency: 2-4 hours

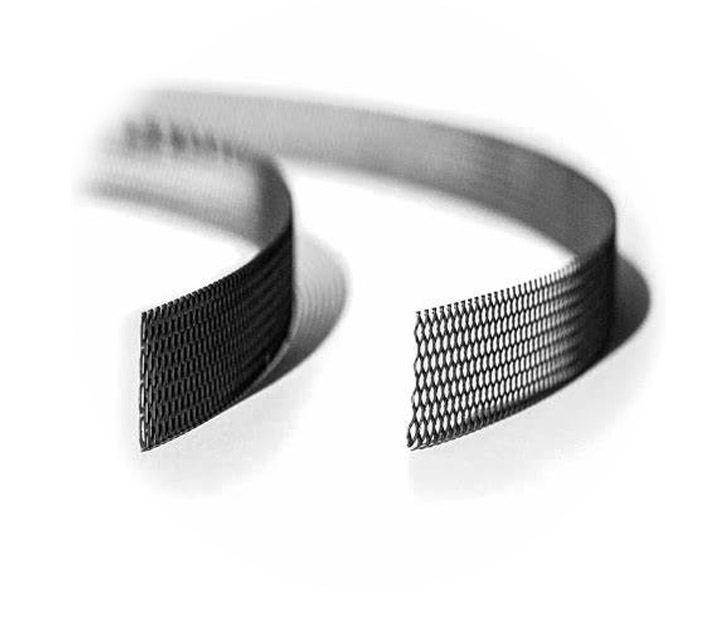

Titanium Mmo Coated Mesh Ribbon Anode for Cathodic Protectio(图1)

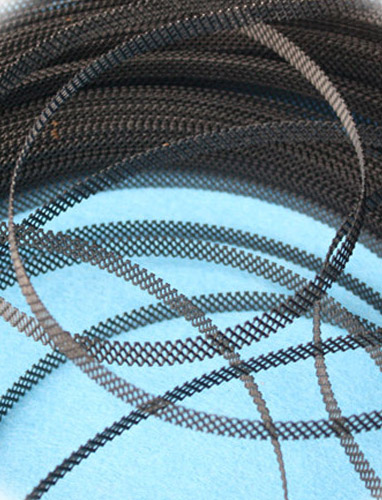

Titanium Mmo Coated Mesh Ribbon Anode for Cathodic Protectio(图2)

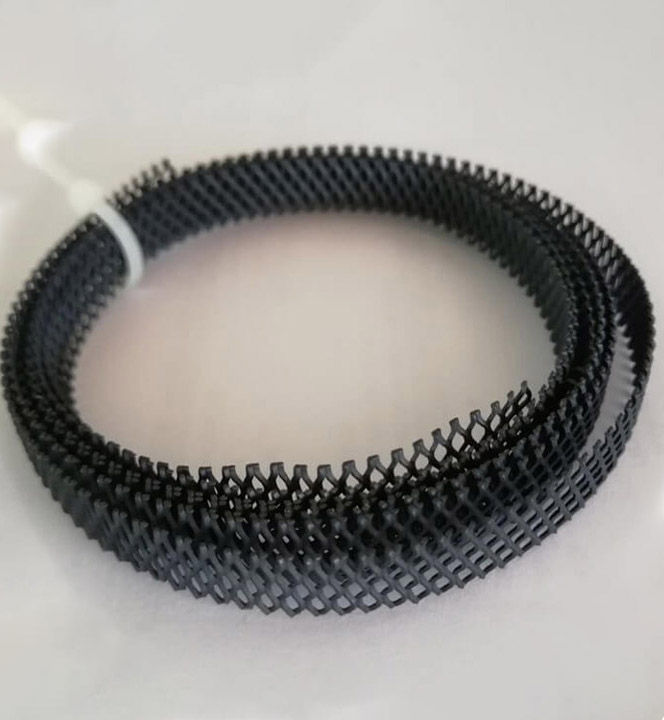

Titanium Mmo Coated Mesh Ribbon Anode for Cathodic Protectio(图3)
