Application

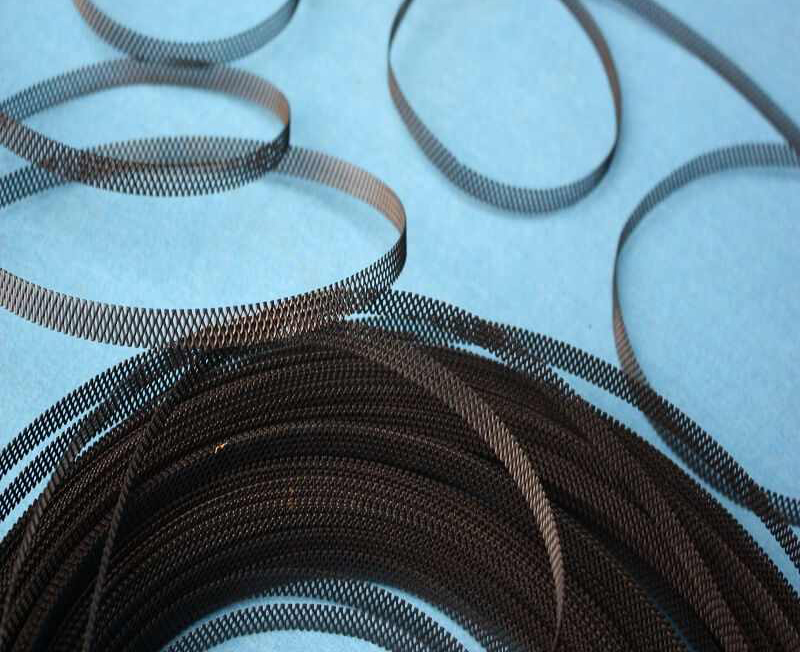

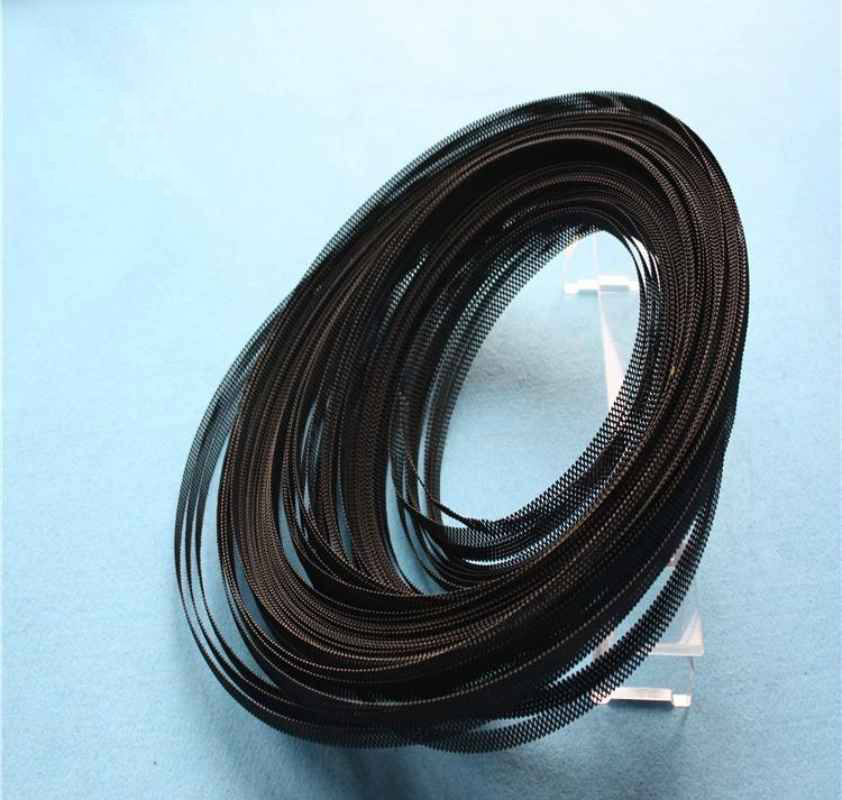

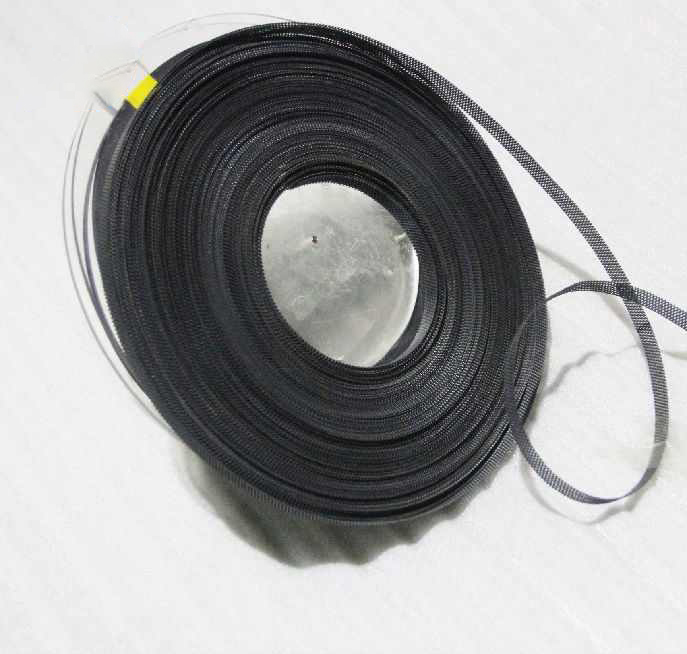

MMO with titanium mesh anode (MMO grid anode) is a titanium mesh with a base material, through a special process coated with precious metal mixed oxide, titanium conductive sheet forms a network structure cross welding auxiliary anode;
The use of MMO titanium mesh belt anode in impressed current cathodic protection device , together with potentiostat, grid anode and anode cable junction box, long-term copper sulfate reference electrode or high-purity zinc reference electrode, form a mesh Anode impressed current cathodic protection device system;
MMO titanium mesh anode strip may be uniformly diverging current to the adjacent outer wall surface of the tank bottom, to reduce the risk of over or under the protection of protection.
Features
Simple installation and simple construction
Long service life, design service life can reach more than 60 years
The coating loss rate is low and uniform
Stable performance, showing excellent performance even in chloride-contaminated concrete
Can work under high current density
| specifications (customizable) | output current | mesh size （mm） | design service life （year） |
| 10mm x 76mm | 2.8mA/m2 | 2.5 x 4.6 x 0.6 | 20、30、50、70 |
| 13mm x 76mm | 3.5 A/m2 | 2.5 x 4.6 x 0.6 | 20、30、50、70 |
| 19mm x 76mm | 5.28A/m2 | 2.5 x 4.6 x 0.6 | 20、30、50、70 |
| 1.10m x 76mm | 18.8A/m2 | 34 x 76 x 0.64 | 20、30、50、70 |
| 1.20m x 76mm | 24.4A/m2 | 34 x 76 x 0.89 | 20、30、50、70 |
| 1.20m x 76mm | 37.8A/m2 | 25 x 51 x 0.89 | 20、30、50、70 |
