Standard: ASTM B386
Material: >99.95%
Density: 9.8~10.20g/cc

Applications

It can be used in components of an electron tube, heaters of high-temperature furnaces, thermocouple retainers.

Specifications

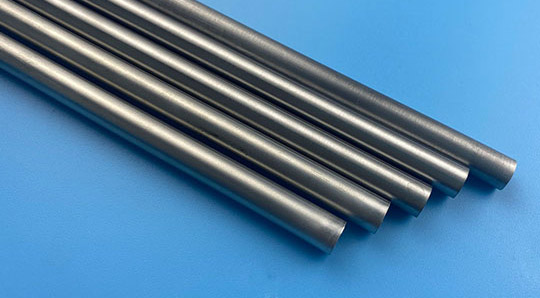

We can supply seamless or welding molybdenum tubes and pipes of good quality. Below are most of the standard sizes. If you do not see the size of the molybdenum tube you require, please feel free to contact us.

Name	Outer Diameter (mm)		Wall Thickness (mm)		Length (mm)
	Size	Tolerance	Size	Tolerance	Size	Tolerance
Molybdenum Tube/Pipe	<100	±1.0	<1	±0.1	<100~150	±2.0
	100~200	±2.0	1~3	±0.25	150~350	±3.0
	200~300	±3.0	3~10	±0.5	350~650	±4.0
	300~400	±5.0	10~20	±1.0	650~2000	±5.0
	>400	±7.0	20~30max	±1.0	2000 ~ 6000 max	±5.0



Surface Condition

Molybdenum Capillary Tube

Description

Standard: ASTM B386
Material: Mo-1, Mo-2, >99.95%
Density: >10.15g/cc

Application

Molybdenum capillary tube can be used as thermowell and used in metal, quartz, and glass melting fields.

Specification
