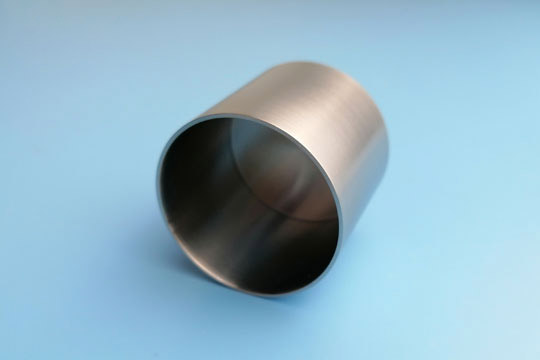

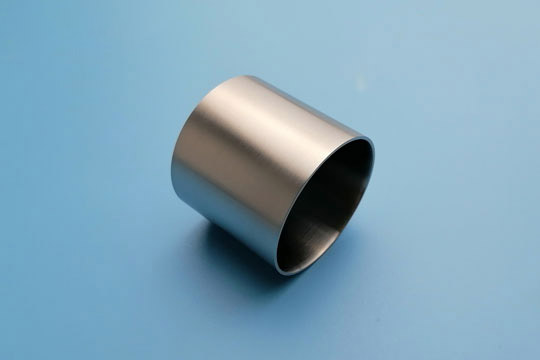

Molybdenum Crucible
We produces molybdenum material and components for leading sapphire growth furnace OEMs and crystal growers around the world. We provides a variety of crucibles for sapphire growth furnaces and many other components for these furnaces. Corrosion resistance, creep resistance, and high-temperature performance makes molybdenum and tungsten crucibles ideal for use in high-temperature crystal growth processes. Crystal growth is the foundation for many cutting edge technologies such as Sapphire touch screens, LED lighting parts, solar cells, and high power lasers.
We can provide two kinds of molybdenum crucibles. One is a sintering product; its density is among 9.8 ~ 10g/cc. The other one is forging product; its density can reach 10.2g/cc.
Standard: ASTM B386
Material: >99.95%
Density: 9.8~10.20g/cc
Molybdenum Crucible Applications
Molybdenum crucible is widely used as furnace crucible. Molybdenum crucibles of different sizes are used in the rare earth industry, metallurgical industry, monocrystalline silicon, solar energy, artificial crystal, and mechanical processing industries.
Molybdenum Crucible Specifications
We provides forged molybdenum crucible and sintered molybdenum crucible. With our many years of experience in the field of powder metallurgy, we produce crucibles of particularly high purity, high-density precise size, and smooth surface, but without cracks, voids, and irregular protrusions. Our products have a longer service life, which will help you to save your cost.
Our company produces various crucibles, such as round mouth crucible, taper crucible, ellipse crucible, and bottomless crucible. It can be produced according to the customers’ drawings. If you do not see the size of the molybdenum crucible you require, please feel free to contact us.
|
Delivery Condition |
Size(mm) |
Tolerance(mm) |
Surface Roughness |
|
Diameter (mm) |
High (mm) |
Wall Thickness (mm) |
Diameter (mm) |
High (mm) |
Ra |
|
Sintering |
10~500 |
10~600 |
8~20 |
+/-5 |
+/-5 |
1.6 |
|
Forging |
10~130 |
10~200 |
8~20 |
+/-1 |
+/-2 |
1.6 |
