NIOBIUM SHEET

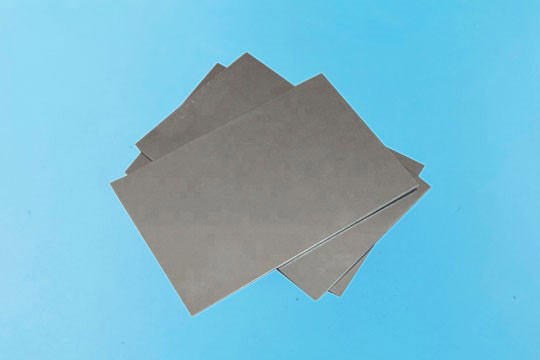

Niobium Sheet
Material: RO4200-1, RO4210-2A
Standard: ASTM B392-98
Purity: Nb >99.9%, >99.95%
Niobium Sheet Applications
As a high-temperatures and corrosive material, niobium foil and strip are commonly used in industrial diamond production, deep draw application, chemical industrial, and medical fields. Additionally, niobium is used to make colored jewelry. We can provide bright surface finishing that is perfect for such applications that involve anodizing.
Niobium Sheet Specifications
Thickness |
Tolerance |
Width |
Tolerance |
Length |
Tolerance |
GradeⅠ |
GradeⅡ |
>0.15-0.2 |
±0.015 |
±0.02 |
50-300 |
±2.0 |
100-1000 |
±2.0 |
>0.2-0.3 |
±0.020 |
±0.03 |
50-300 |
±1.0 |
100-1000 |
±2.0 |
>0.3-0.5 |
±0.030 |
±0.04 |
50-500 |
±1.0 |
100-1500 |
±2.0 |
>0.5-0.8 |
±0.040 |
±0.06 |
50-500 |
±1.0 |
50-2000 |
±2.0 |
>0.8-1.0 |
±0.060 |
±0.08 |
50-500 |
±1.0 |
50-2000 |
±2.0 |
>1.0-1.5 |
±0.080 |
±0.10 |
50-500 |
±2.0 |
50-2000 |
±2.0 |
>1.5-2.0 |
±0.120 |
±0.14 |
50-500 |
±2.0 |
50-2000 |
±2.0 |
>2.0-3.0 |
±0.160 |
±0.18 |
50-500 |
±2.0 |
50-2000 |
±2.0 |
>3.0-4.0 |
±0.180 |
±0.20 |
50-500 |
±1.0 |
50-1500 |
±1.0 |
>4.0-6.0 |
±0.200 |
±0.24 |
50-350 |
±1.0 |
50-1500 |
±1.0 |
Chemical Composition of Niobium Sheet
Grade |
Chemical Composition, Max |
Fe |
Si |
Mo |
W |
Ti |
Cr |
Ta |
Ni |
O |
C |
H |
N |
Nb |
Nb1 |
0.005 |
0.005 |
0.010 |
0.010 |
0.002 |
0.002 |
0.1 |
0.005 |
0.015 |
0.010 |
0.001 |
0.010 |
Balance |
Nb2 |
0.010 |
0.005 |
0.010 |
0.020 |
0.005 |
0.005 |
0.250 |
0.005 |
0.025 |
0.020 |
0.005 |
0.025 |
Balance |
Niobium Sheet Properties
Grade |
Tensile Strength δbpsi (MPa) ≥ |
Yield Strength δ0.2, psi (MPa) ≥ |
Elongation in 1″/2″ Gage Length, %, ≥ |
>=0.010 |
<0.010 |
RO4200-1 |
18000 (125) |
12000 (85) |
25 |
20 |
RO4210-2 |
Surface Treatment of Niobium Sheet
Surface can be supplied in a shiny, matte, satin, or as-rolled condition, depends upon thickness and width parameters.
Heat Treatment of Niobium Sheet
Niobium flat products are rolled and annealed to provide the optimum condition for the desired end-use.
