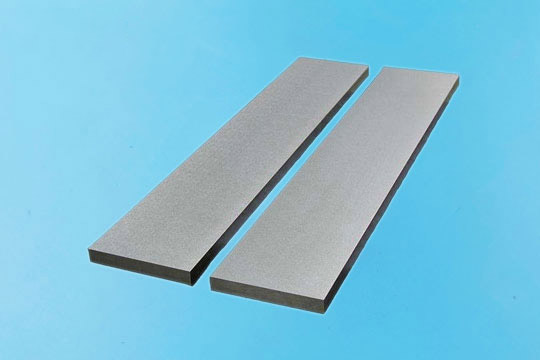

NIOBIUM PLATE
Niobium Plate
Material: RO4200-1, RO4210-2A
Standard: ASTM B392-98
Purity: Nb >99.9%, >99.95%
Niobium Plate Applications
As a high-temperatures and corrosive materials, niobium foil and strip are commonly used in industrial diamond production, deep draw application, chemical industrial, and medical fields. Additionally, niobium is used to make colored jewelry. We can provide bright surface finishing that is perfect for such applications that involve anodizing.
Niobium Plate Specifications
|
Name |
Thickness (mm) |
Width (mm) |
Length (mm) |
|
Foil |
0.03-0.09 |
30-150 |
>200 |
|
Sheet |
0.1-0.5 |
30- 400 |
30-1000 |
|
Plate |
0.5-10 |
30- 400 |
50-2000 |
Chemical Composition of Niobium Plate
|
Grade |
Major Components |
Maximum Impurities (ppm) |
|
Nb |
Ta |
Si |
Ni |
W |
Mo |
Ti |
Fe |
O |
C |
H |
N |
|
Nb1 |
Balance |
<700 |
50 |
50 |
50 |
30 |
20 |
50 |
150 |
40 |
15 |
30 |
|
Nb2 |
Balance |
<1000 |
80 |
40 |
100 |
100 |
40 |
80 |
180 |
60 |
15 |
50 |
Surface Treatment of Niobium Plate
Surface can be supplied in a shiny, matte, satin, or as-rolled condition, depends upon thickness and width parameters.
Heat Treatment of Niobium Plate
Niobium flat products are rolled and annealed to provide the optimum condition for the desired end-use.
