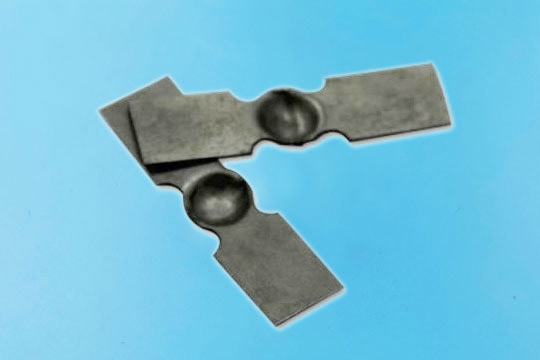

Tungsten Boat

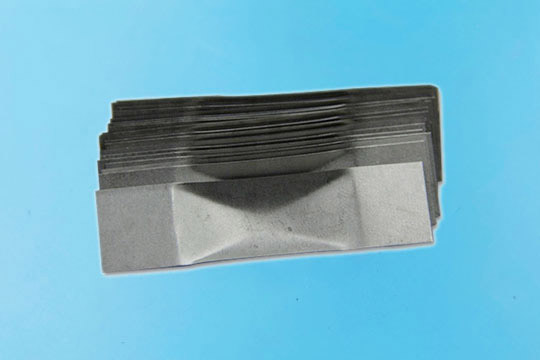

Tungsten boat is made of Tungsten sheet through a process of cutting, bending, welding, and riveting. We can manufacture customized tungsten boats according to customers’ requirements. We can provide bending, folding, riveting, pressing, and welding tungsten boats according to our customer’s needs. Our special production line manufactures tungsten boats and elaborately made from tungsten plates or sheets with high-quality. Our tungsten boat has high purity, high-density, varied types, stable performance, and longer service life, for helping you save cost.

Shapes of Evaporation Boats

1. Trough Boats
2. Dimple Boats
3. Notched Boats
4. Canoe Boats
5. Holed/ Covered Boats
6. Slab/ Flat/ Dish Boats
7. Well Boats
8. Tube Heater/ Crucible Heater Boats
9. Elongated Dimple Boats

Dimensions of Evaporation Boats

Type	Length (mm)	Width (mm)	Length or Diameter  of the Recess (mm)	Depth of the Recess (mm)	Thickness (mm)	Volume (cc)

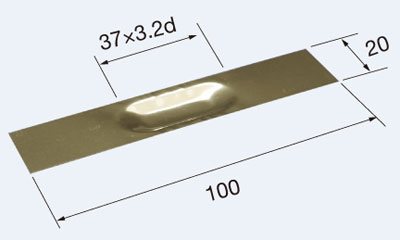

EB-1	100 mm	20 mm	37 mm	3.2 mm	0.1 mm, 0.2 mm , 0.3 mm	0.62 cc
EB-2	100 mm	13 mm	10 mm	2.0 mm	0.1 mm, 0.2 mm , 0.3 mm	0.07 cc
EB-3	100 mm	17 mm	15 mm	2.9 mm	0.1 mm, 0.2 mm , 0.3 mm	0.23 cc
EB-4	102 mm	15 mm	40 mm	2.5 mm	0.1 mm, 0.2 mm , 0.3 mm	0.83 cc

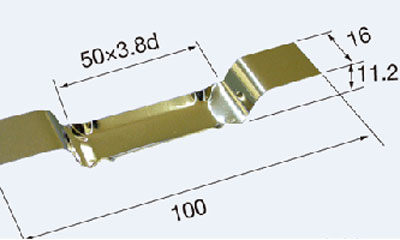

EB-5	100 mm	16 mm	50 mm	3.8 mm	0.1 mm, 0.2 mm , 0.3 mm	2.04 cc
EB-6	100 mm	13 mm	18 mm	2.0 mm	0.1 mm, 0.2 mm , 0.3 mm	11.2 cc
EB-7	90 mm	14 mm	10 mm	2.0 mm	0.1 mm, 0.2 mm , 0.3 mm	0.07 cc
EB-8	100 mm	15 mm	40 mm	2.3 mm	0.1 mm, 0.2 mm , 0.3 mm	0.74 cc
EB-9	100 mm	16 mm	34 mm	2.9 mm	0.1 mm, 0.2 mm , 0.3 mm	0.61 cc
EB-10	100 mm	17 mm	15 mm	2.5 mm	0.1 mm, 0.2 mm , 0.3 mm	0.2 cc

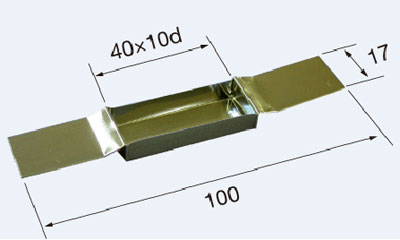

EB-11	100 mm	17 mm	40 mm	10 mm	0.1 mm, 0.2 mm , 0.3 mm	5.79 cc
EB-12	100 mm	10 mm	44 mm	2.7 mm	0.1 mm, 0.2 mm , 0.3 mm	0.44 cc
The customized size can be porvided accroding to customer's drawings.

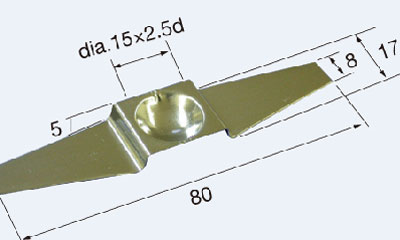

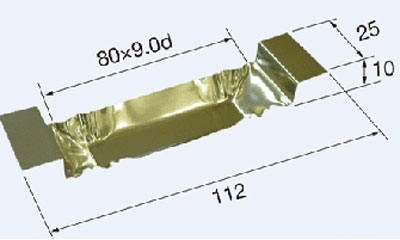

Drawings of Evaporation Boats

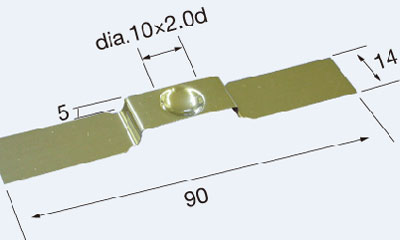

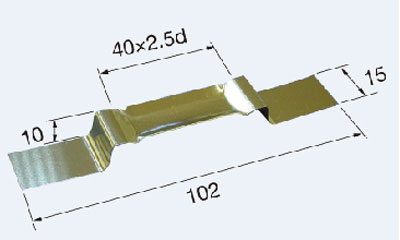

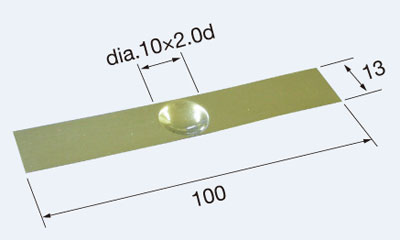

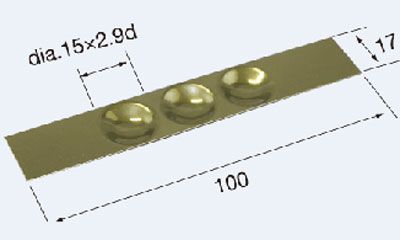

EB-1		EB-2		EB-3		EB-4

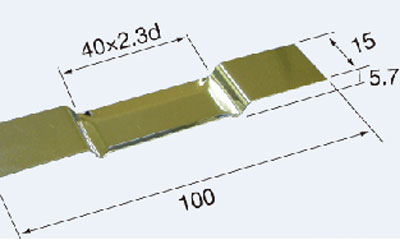

EB-5		EB-6		EB-7		EB-8

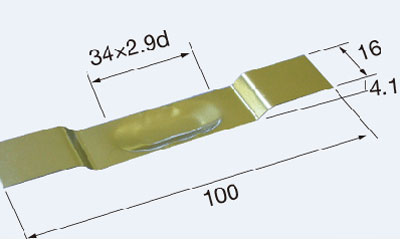

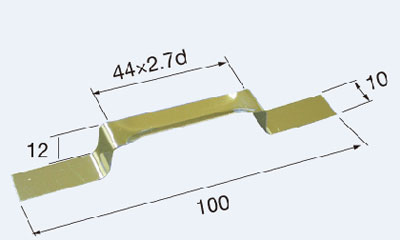

EB-9		EB-10		EB-11		EB-12

Tungsten Boat Properties

Tungsten Boat Application

Tungsten boat is widely used in military industry, electronic industry, and light industry. Besides, it can also be applied in metalizing, electron beam spraying, and the vacuum coating industry.

Tungsten Boat Specification

Length: 50mm-1000mm
