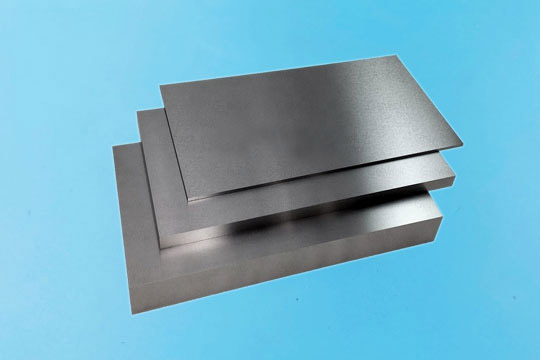

Tungsten Plate
Tungsten mill products from tungsten plate, tungsten sheet, and tungsten foil with many options on width, length, and thickness. Pure Tungsten flat-rolled products are fabricated from pressed and sintered powder metallurgy ingot. Tungsten ingots are first forged into block blank and then rolled to tungsten plate, tungsten sheet, and tungsten foil. We provide Tungsten plates with purity W≥99.95%, widely used in ion implantation, sputtering, coating, medical CT, electronics, and vacuum equipment.
Purity: W>99.95% (99.999% can also be achieved if special demanded)
Density: >19.15g/cc
Surface: Hot-rolled surface, cold-rolled surface, polished surface
Flatness: <2%
High Precision Tungsten Plate
Specification: (1.0-42.0)mm x (30-450)mm x≤500mm.
Standard: GB/T3875 ASTM B760.
Size tolerance: ±0.025mm.
Squareness: 0.025mm.
Surface roughness: Ra 0.8.
Applications: Widely used in the fields of ion implantation, sputtering, and coating.
Tungsten Plate Applications
- Ion implantation parts.
- Sputtering target.
- Source block and parts for heat-resisting materials.
- Electrical heating devices.
Tungsten Plate Specifications
|
Surface |
Thickness (mm) |
Tolerance (mm) |
Width (mm) |
Tolerance (mm) |
Length (mm) |
Tolerance (mm) |
Roughness (um) |
|
Rolling |
1.0-3.0 |
±0.05~±0.5 |
10-300 |
±0.2~±0.5 |
10~2000 |
±0.2~±0.5 |
/ |
|
Turning |
3.0-40 |
±0.05~±0.1 |
10-300 |
±0.1~±0.5 |
10~500 |
±0.1~±0.5 |
Ra≤1.6 |
|
Ground |
1.0-40 |
±0.05~±0.1 |
10-800 |
±0.05~±0.2 |
10~1000 |
±0.05~±0.2 |
Ra≤0.8 |
|
Cold rolling |
0.1-1.0 |
±0.01~±0.1 |
10-300 |
±0.05~±0.2 |
10~300 |
±0.05~±0.2 |
Ra≤0.8 |
High Purity Tungsten Plate
|
Type
|
Purity (wt%)
|
Density (g/cm3)
|
Grain Size (μm)
|
Dimension (max.mm)
|
Ra (μm)
|
|
W4N5
|
99.995
|
≥19.15
|
＜100
|
Ф450 x 10
|
≤1.6
|
|
W5N
|
99.999
|
≥19.15
|
＜100
|
Ф450 x 10
|
≤1.6
|
Surface Treatment of Tungsten Plate
1. Hot-rolled alkaline cleaning surface
2. Electrolytic polish surface
3. Cold-rolled surface
4. Machined surface
5. Polished
Tungsten Plate Properties
1. High-temperature resistance
2. High hardness
3. High density
Tungsten Plate Package
Tungsten plates are fragile and heavy; carefully handling is required. The standard package for tungsten plate product is a wooden crate so that the tungsten plate can be protected during handling and transportation.
